 The modern PACS (Picture Archiving and Communication System) digital revolution appears to offer significant savings in terms of variable costs.
Nevertheless, the filmless technology is a real advantage if there is the ability to extract the PACS information and burn it onto CDs or DVDs containing imaging studies for referring physicians, patients, review in the operating room, conferences, and research collaborations.
In addition, CDs are efficient storage media for clinics and small imaging centres that do not archive images on a PACS.
EMEA DICOMBurner solution is intended as a mean to produce digital media containing medical images, to be provided to patients in substitution of the traditional film hard copies of the exams. Also the produced media can be used to exchange DICOM images between non-connected PACS or DICOM workstations.
EMEA DICOMBurner solution allows connecting a common Windows-based PC to a DICOM network and handling the storage and query/retrieve requests coming from DICOM-compliant devices: it receives, sends and retrieves DICOM files through the DICOM network, acting as a DICOM Storage and Query/Retrieve SCU and SCP.
EMEA DICOMBurner solution allows obtaining one or more CDs or DVDs containing the DICOM files related to selected patients, studies or series, by JUST ONE CLICK. If coupled with a CD/DVD production unit, it also supports completely automated media production and surface printing. The label printed on the surface of the CD/DVD is completely customizable, and may also include dynamic fields extracted directly from the DICOM data set (Patient ID, Patient Name, Study Description, Study Date, Institution Name, etc.). |
EMEA DICOMBurner solution prevents data loss allowing the backup and restore of DICOM files and database content. If coupled with a CD/DVD production unit, it also supports completely automated media production and surface printing. The label printed on the surface of the CD/DVD is completely customizable, and may also include dynamic fields as the media identifier and the backup date and time.
|
|
EMEA DICOMBurner solution is a Windows 32-bit multi-thread application, acting as a TCP connection server. It works in background and no user interaction is necessary to have it working as a DICOM Storage SCU/SCP and Query/Retrieve SCU/SCP. EMEA DICOMBurner solution is provided with an easy-to-use Graphical User Interface, which allows burning DICOM images, setting the numerous configuration preferences and checking logs and statistics about the DICOM communication.
From the DICOM point of view, EMEA DICOMBurner solution acts as a Storage and Query/Retrieve SCU (Service Class User) and SCP (Service Class Provider), accepting incoming connections and DICOM associations by Storage and Query/Retrieve SCU.
DICOM support
- Handles up to 10 simultaneous DICOM associations
- Support for all DICOM Storage SOP Classes with SCP role
- Act as Storage and Query/Retrieve SCP and SCU
- Configurable Application Entity Title
- Supports UNICODE; it is able to manage DICOM files with a non default character set
- Support for Media Storage Application Profile as defined by the DICOM 3.0 standard
Application-level features
- Capability to receive and store DICOM files coming from a DICOM-network
- Capability to import DICOM files from a local disk or from a remote DICOM device acting as a Query/Retrieve SCU
- Capability to export DICOM files to a local disk (supported formats DICOM, BMP, JPEG, PNG and TIFF) or to a remote DICOM device acting as a Storage SCU
- Capability to delete a portion of the database content by using a quick and easy process to select the DICOM files
- Capability to automatically delete the oldest files (according to the actual storage date/time) from database, in order to recover storage space
- Capability to display statistics on the DICOM associations
- Capability to backup and restore DICOM files and database content to prevent data loss in case of system failure (Optional)
- Capability to record patient CDs and DVDs containing DICOM files
- One-click CD or DVD burning shortcuts
- Support for Rimage, MFDigital and Primera CD/DVD Production Unit
- Support for Automatic CD/DVD Production based on job forwarding rules
- Support for Automatic Backup of DICOM files and database content
- Easy to use, wizard-based procedures to select studies, series and instances to be deleted, burnt, backed-up or exported
- Support for intelligent multiple-disk spanning, in case the selected files do not fit on a single CD or DVD
- Support for creation of multi-platform CD/DVD running on Windows, Linux and Mac OSX
- Automatic generation of the DICOMDIR root file, stored on each produced CD or DVD
- LocalEye DICOM Viewer bundled with the software package featuring a full support for DICOM SR (Structured Report) and DICOM PS (Presentation State)
- Detailed event log, both on display and on disk file
- GUI language localization
|
Product Reference |
Application |
EMEA II
(1 CD/DVD Burners)
 |

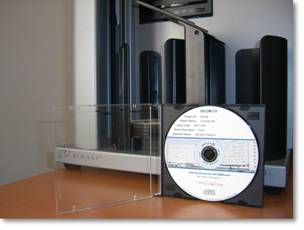

Self-operating CD-Rom & DVD generator.
Directly connected into the DICOM imaging network and automatically runs the CD/DVD burning and labelling processes after reception of examinations from any modalities or work-stations within the network. Incl. Computer, LCD screen & software.
Production : +/- 50 CD/DVD / day |
EMEA PRO
(2 CD/DVD Burner )
 |
Self-operating CD-Rom & DVD generator.
Directly connected into the DICOM imaging network and automatically runs the CD/DVD burning and labelling processes after reception of examinations from any modalities or work-stations within the network. Incl. Computer, LCD screen & software.
Production : +/- 100 CD/DVD / day |
EMEA XR
(1 CD/DVD Burner – Rack mounted)
 |
Self-operating CD-Rom & DVD generator.
Directly connected into the DICOM imaging network and automatically runs the CD/DVD burning and labelling processes after reception of examinations from any modalities or work-stations within the network. Incl. Computer, LCD screen & software.
Production : +/- 50 CD/DVD / day |
EMEA XR PRO
(2 CD/DVD Burner – Rack mounted )
 |
Self-operating CD-Rom & DVD generator.
Directly connected into the DICOM imaging network and automatically runs the CD/DVD burning and labelling processes after reception of examinations from any modalities or work-stations within the network. Incl. Computer, LCD screen & software.
Production : +/- 100 CD/DVD / day |
|
|
